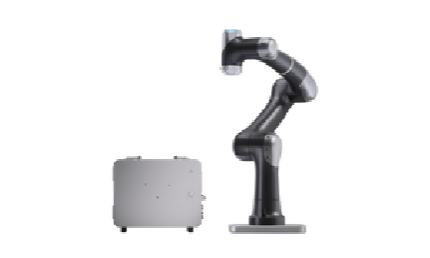

Vbot 9C

Ⅰ Specifications

Ⅱ Overview Features

1. Agile Motion 6-axis, ±360° Movement

2. Remarkable Repeatability ±0.03 mm

3. Payload 5 kg

4. Working Radius 919 mm

5. 919 mm IP 54

6. Easy to Use Includes Teach Pendant

7. Safety in Every Move

Work safely alongside Vbots, whose advanced torque sensors are capable of detecting even slight forces for rapid collision prevention. It’s 5 times more responsive than standard systems, with over 21 TÜV-certified safety features, redundant monitoring, and a secure braking system.

8. 6-Axis Torque Sensing

High-Precision Torque Detection

Equipped with advanced integrated 6-axis torque sensors, the Vbot 9 provides ultra-sensitive force feedback with rapid response times. This enables real-time, dynamic multi-axis force measurement and exact torque control, empowering high-accuracy, complex manipulation tasks across demanding industrial and research applications.

9. Smooth Drag-to-Teach Operation

The intuitive drag-to-teach function simplifies path planning with natural human-robot interaction, ensuring quick setup and safe, seamless operation.

10. Fine Motor Control

Vbot robots achieve a repeatability of ±0.03 mm, allowing them to handle challenging tasks such as precision assembly and testing.

11. Superior Performance

The six-axis robotic arm's high-dynamic joint force control increases its collaborative efficiency by over three times. With a working radius of 919 mm, it can fully adapt to diverse work applications.

12. Engineered for Endurance

The Vbot 9 series offers exceptional reliability with an industry-leading 80,000-hour mean time between failures. Rated for IP54 protection for durable operation in complex industrial environments.

13. xPad Teach Pendant

The xPad is a lightweight, user-friendly teach pendant that streamlines robot programming and control. Its high-resolution 10.1" touchscreen and intuitive interface enable fast setup and interaction with Vbot series robots. With its quick-start functionality and ergonomic design, the xPad empowers operators to easily and precisely teach and deploy automation tasks.

14. From Box to Bot in No Time

Offering quick installation and programming, even for beginners. Intuitively teach the bot what to do by moving the Vbot's arm to teach it how to complete even complex tasks. Its intuitive graphical user interface can be quickly mastered, and extensive SDK interfaces support rapid development of specialized applications.

15. Built for Customization

Revopoint provides a versatile one-stop solution for human-machine collaboration, supporting fast customization through real-time development interfaces. Support for Modbus, PROFINET, CC-Link, and RS485 ensures easy integration, while Metro Hub's enables quick offline simulation and solution design.

16. Control Cab

The Control Cab is a compact, high-performance external controller for Vbot series cobots, offering powerful control in a lightweight 2.4 kg design. With dual Ethernet ports, digital I/O, and 24V power output, it enables seamless connectivity and flexible deployment, even in the tightest spaces.

17. One Ecosystem, Endless Possibilities

Empower human-machine collaboration with a versatile, all-in-one solution. With powerful tools like RCI, SDK, and RevoRobot, we deliver plug-and-play flexibility for every industry need.From force control to laser welding, our robust ecosystem enables seamless integration and secondary development, making us the trusted partner for equipment manufacturers and integrators alike.

Ⅲ Automation Solutions

1. 3D Scanning

Speed up your quality control processes with automated 3D scans, helping to inspect for defects, dimensional deviations, or surface irregularities, ensuring fast, accurate, and consistent workpiece checks every time.

2. Metal Fabrication

Significantly increasing production efficiency while reducing costs using SR robots for non-stop casting, loading & unloading, chamfering, welding, deburring, and other processes under harsh working conditions with heavy dust, heavy moisture, and high temperature.

3. Industrial Manufacturing

Boost manufacturing productivity with SR's ±0.03 mm high reliability and 24/7 operational continuity for CNC, injection molding, stamping operations, and automotive assembly. Its IP54 protection makes it suitable for industrial environments.

4. Healthcare

SR4 streamlines laboratory sample processing and auxiliary operations. Operating at speeds of up to 2s, it quickly executes batch sample classification and other tasks, maximizing efficiency.

5. Logistics & Warehousing

Transform efficiency and accuracy in supply chain operations with Visuabot's robotic automation. Use its adaptive systems for precision order picking, inventory synchronization, and high-speed palletizing.

6. Energy & Semiconductors

Fully automates repetitive tasks requiring high accuracy for battery production and wafer processing.
